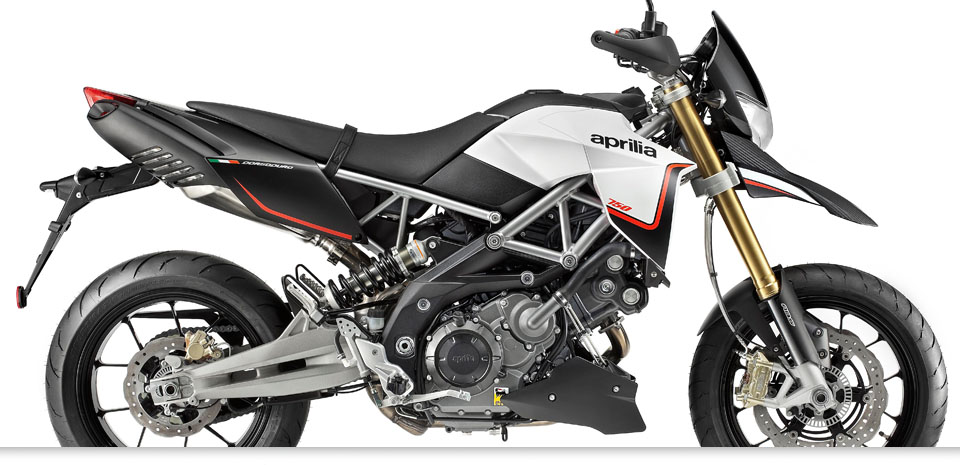

  A UNIQUE MOTORCYCLE WITH AN UNMISTAKABLE CHARACTER, DEVELOPED FROM APRILIA'S RACING EXPERIENCE WITH A SINGLE-MINDED GOAL: TO OFFER TOTAL RIDER ENJOYMENT. 92 HORSEPOWER AND EXCLUSIVE TRI MAP RIDE BY WIRE TECHNOLOGY IN A LIGHTWEIGHT, HIGH PERFORMANCE BIKE CREATED TO COMPLEMENT THE SKILLS OF EVEN THE MOST DARING RIDERS AND ALSO AVAILABLE WITH ABS.

Developed in collaboration with the Aprilia Racing Division – which has thirty-seven world championships under its belt – Aprilia Dorsoduro 750 has been created by fusing the best characteristics of a sports bike with the best that a racing super-motard has to offer. The result is the concentrated essence of performance and technology, a genuinely special, extreme and elite bike that can make any rider feel like a pro.

Light, agile and powerful, Dorsoduro 750 is powered by a latest generation engine and boasts the most advanced technology in its class. Through the use of state of art electronic engine management, Aprilia's compact 90° V-twin delivers blistering performance unmatched by any of its rivals, with an incredible specific power output of 122.6 hp/litre and a maximum torque of 82 Nm at just 4500 rpm.

True to Aprilia tradition, the chassis architecture is unparalleled in its class. After the acclaimed debut of the mixed trellis/aluminium frame on the ultra-specialised SXV, the application of the layout in the Dorsoduro establishes it a hallmark feature of Aprilia motards, offering levels of directional agility, reactivity and steering precision far beyond the reach of any rival.

The essentially designed Aprilia Dorsoduro boasts only the best in terms of componentry, technical specifications and finish. Four-piston radial callipers, wave discs, a hydraulic wet clutch, adjustable suspension front and rear, “Tri-Map” ride by wire and the Matrix instrument panel with on board computer all contribute to making the Dorsoduro a truly unique product.





















Aprilia DORSODURO 750 規格表
 呎吋 SIZE
 全長 Length 2,216mm
 全闊 Width 905mm
 全高 Height 1,185mm
 軸距 Centre to centre distance 1,505mm
 座位高度 Saddle height 870mm
 最低離地距 Height from the ground -
 淨重 Dry weight 186kg
 油箱容量 Fuel tank capacity 12L
 引擎 ENGINE
 引擎模式 Engine 水冷四衝程縱向90度V型雙汽缸DOHC 8氣門
Aprilia V90 four-stroke longitudinal 90° V-twin engine, liquid cooled, double overhead camshafts with mixed gear/chain timing system, four valves per cylinder.

 排氣量 Total displacement

749.9c.c.
 最大馬力 Max. power at the crank 92ps / 8,750rpm
 最大扭力 Max. torque at the crank
8.4kg-m / 4,500rpm
 壓縮比 Compression ratio 11.0 : 1
 缸徑x衝程 Bore x Stroke 92mm x 56.4mm
 供油系統 Fuel system 綜合引擎管理系統燃油噴注
Integrated engine management system. Injection system
 前傾角 Steering angle 26°
 拖曳距 Trail 108mm
 起動 Starting 電動 Electric
 傳動系統 Gear box 濕式多片6前速,鍊條傳動
6-speeds , Chain.
 車身 CHASSIS
 車架型式 Frame 綑桿式高拉力鋼管車架
Modular steel trellis secured to aluminium side plates by high strength bolts. Detachable rear frame.
 前懸掛系統 Front suspension 直徑 43mm 全方位調校倒立前叉,行程160mm
43 mm upside-down fork. 160 mm wheel travel.
 後懸掛系統 Rear suspension
單筒油壓彈簧,附調校功能,160mm行程
Aluminium alloy swingarm. Hydraulic shock absorber adjustable in spring preload and rebound damping. Wheel travel: 160 mm
 前制動系統 Front Brakes
320mm菊花碟配四活塞放射式卡鉗
Double stainless steel floating disc (Ø 320 mm). Four-piston radial calipers. Metal braided brake line.
 後制動系統 Rear Brakes
240mm菊花碟配單活塞卡鉗
Stainless steel disc (diam. 240 mm) with single piston caliper. Metal braided brake line.
 前輪胎 Front Tyres 120/70 ZR17
 後輪胎 Rear Tyres 180/55 ZR17
