Aprilia RSV4大特集-Part 2



  新抵港的2014 APRILIA RSV4分別有Factory及R版,兩個版本的分別是FACTORY使用頂級的裝備,包括Ohlins前後避震、Ohlins可調式釘把、黑色的前後鍛 造輪圈、碳纖維製的頭尾沙板、Brembo M430放射式卡鉗及新剎車手泵等等,全車總重量只有181kg,較R標準版輕5kg。至於R版則配備Sachs前後避震、Sachs釘把、三柱式鑄造前 後輪圈及仿碳纖維花紋的頭尾沙板等等,所以售價較Factory便宜。

不論是Factory及R版,均配備先進的APRC電子系統(Aprilia Performance Ride Control system),而該套電子系統包括Aprilia Wheelie Contro防起頭系統、Launch Control賽車式起步控制、Quick Shift快速電子轉檔及Traction Control循跡系統。


Created with the single-minded goal of being simply the best on the track and on the road, since its inception the Aprilia RSV4 has astonished the world with its looks, technology and performance. The first 65° V-4 engine ever in a sports production bike, a chassis worthy of a 250 GP, Ride By Wire, multimap engine management: all these are accomplished achievements for the Aprilia RSV4, that tops unique architecture and specs with Aprilia's signature excellent rideability brought to the next level.

A project conceived not just to create a motorcycle that delivers the utmost in performance, but one that also allows the rider to make full use of every last iota of its competitive potential.

The excellent results obtained by all of the champions who have ridden it in races are not by chance. Nonetheless, the true revolution of the new Aprilia RSV4 R APRC is that, to explore its potential and have fun, you don't have to be a world champion thanks to the exemplary balance obtained with the APRC (Aprilia Performance Ride Control) system, the exclusive traction control which can be adjusted at eight levels and is capable of self-calibrating based on the different type of tyres, wheelie control, starting assistance and the electronic gearbox.

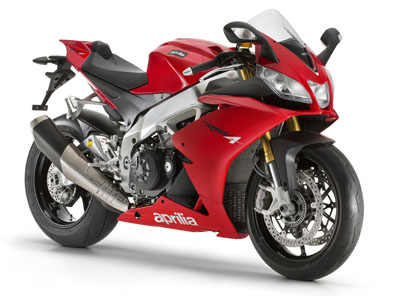

Aprilia RSV4 R ABS APRC規格表
 呎吋 SIZE
 全長 Length 2,040mm
 全闊 Width 735mm
 全高 Height 1,120mm
 軸距 Centre to centre distance 1,420mm
 座位高度 Saddle height 845mm
 最低離地距 Height from the ground 130mm
 淨重 Dry weight 184kg
 油箱容量 Fuel tank capacity 17L (4公升後備)  (4-litre reserve included).
 引擎 ENGINE
 引擎模式 Engine 水冷四衝65度V型四汽缸DOHC 16氣門
Aprilia longitudinal 65° V-4 cylinder, 4-stroke, liquid cooling system, double overhead camshafts (DOHC), four valves per cylinder.

 排氣量 Total displacement

999.6cc
 最大馬力 Max. power at the crank 180ps/12,500rpm
 最大扭力 Max. torque at the crank
11.5kg-m/10,000rpm
 壓縮比 Compression ratio 13.0:1
 缸徑x衝程 Bore x Stroke 78mm x 52.3mm
 供油系統 Fuel system 電子燃油噴注 Electronic fuel injection
 前傾角 Steering angle 24.5°
 拖曳距 Trail 105mm
 起動 Starting 電動 Electric
 傳動系統 Gear box 濕式多片6前速,卡式波箱,鏈條傳動 (附AQS系統)
6-speed cassette type gearbox , Gear lever with Aprilia Quick Shift electronic system (AQS)
 車身 CHASSIS
 車架型式 Frame 鋁合金雙翼樑車架
Twin-spar adjustable aluminium frame, with castings and pressings. Envisaged adjustments: • headstock position and rake • engine height • swingarm pin height Öhlins adjustable steering damper
 前懸掛系統 Front suspension 43mm Sachs倒立前叉,全功能調校,120mm行程
Upside-down Showa fork with Ø 43 mm stanchions. Forged aluminium radial calliper mounting brackets. Completely adjustable spring preload and hydraulic compression and rebound damping. Wheel travel: 120 mm
 後懸掛系統 Rear suspension
Sachs單筒彈簧,全功能調校,130mm行程
Twin sided aluminium swingarm; mixed low thickness and sheet casting technology. Sachs piggy back monoshock with completely adjustable: spring preload, wheelbase, hydraulic compression and rebound damping. APS progressive linkage. Wheel travel 130mm
 前制動系統 Front Brakes
雙320mm浮動碟配Brembo四活塞放射式卡鉗
Dual 320mm diameter floating stainless steel disc with lightweight stainless steel rotor and aluminium flange with 6 pins. Brembo monobloc radial callipers with 4 Æ34-mm opposite. Sintered pads. Radial pump and metal braided brake hose.
 後制動系統 Rear Brakes
單220mm鑽孔碟配Brembo雙活塞浮動卡鉗
220mm diameter disc; Brembo floating calliper with two Æ32mm isolated pistons. Pump with integrated tank and metal braided hose .
 前輪胎 Front Tyres 120/70 ZR17
 後輪胎 Rear Tyres 190/55 ZR17
